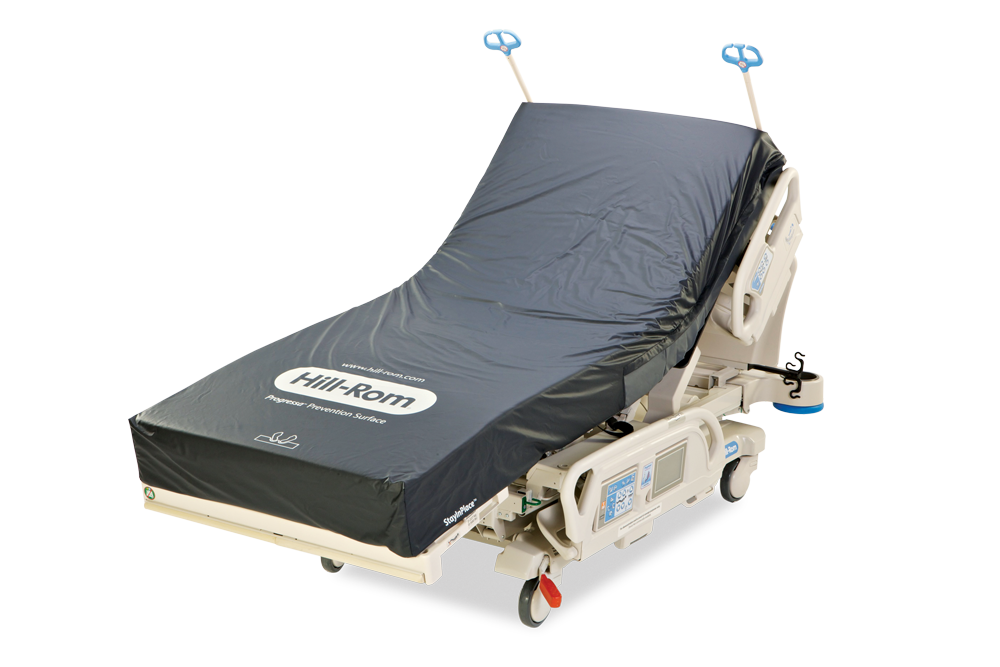

Progressa® Prevention Surface
Total Length
Foot Section Extended
98" (248.9 cm)
Foot Section Retracted
88" (223.5 cm)
Maximum Width
Side Rails Down
40.5" (103 cm)
Side Rails Up
40.5" (103 cm)
Maximum Side Rail Height
Above Sleep Deck
17" (43.2 cm)
Highest Position
Top of Seat Section to Floor
35.7" (90.7 cm)
Lowest Position
Top of Seat Section to Floor
16.5" (41.9 cm)
Minimum Underbed Clearance
4.3" (10.9 cm) w/o IntelliDrive® Powered Transport
Standard Caster Size
6" (15.2 cm)
Cleanability/Infection Control
IPX4
Radiolucent Sleep Deck
Standard 17.7"" x 23" (45 cm x 58.5 cm)
Voltages
100/110/115/120/ 127/220/230/240
Width
35” (88.9 cm)
Length
84” (213 cm)
Height
7.1” (18.1 cm)
Weight
31 lb (14.1 kg)
Articulations
Head Section
77° with Chair Egress
Thigh Section
0° - 30°
Foot Section
0° - 45°
Trendelenburg Position (maximum)
75° with Chair Egress
Reverse Trendelenburg
13°
Position (maximum)
18°
Safe Working Load
650 lb (295 kg)
Maximum Patient Weight
500 lb (227 kg)
C-Arm Clearance
7 - 15" (17.8-38.1 cm)
